Unveiling Red Bull’s Revolutionary F1 Sidepods: A Closer Look at RB20’s Innovative Design

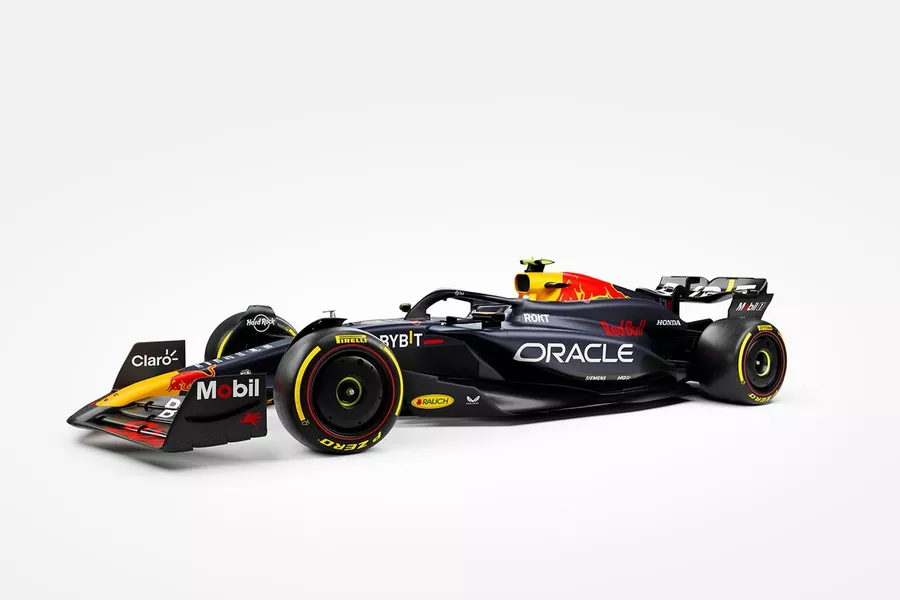

In the fast-paced world of Formula 1, innovation is key to staying ahead of the competition. Red Bull Racing, known for its cutting-edge technology and bold design choices, has once again captured the attention of the F1 community with its latest creation: the RB20.

Evolution of Design: From Underbite to Overbite

Rival teams have been quick to offer their interpretations of Red Bull’s underbite inlet and undercut solution, which has been a signature feature of their cars for the past two seasons. However, with the RB20, Red Bull has taken a bold step forward by ditching the underbite in favor of an overbite arrangement.

The high panel now extends as an overbite, forming an extension for the sidepod’s upper surface, while the inlet is positioned lower, married to a generous undercut. This departure from the underbite design signifies a significant shift in Red Bull’s approach to aerodynamics and cooling efficiency.



The Rise of the Vertical Inlet

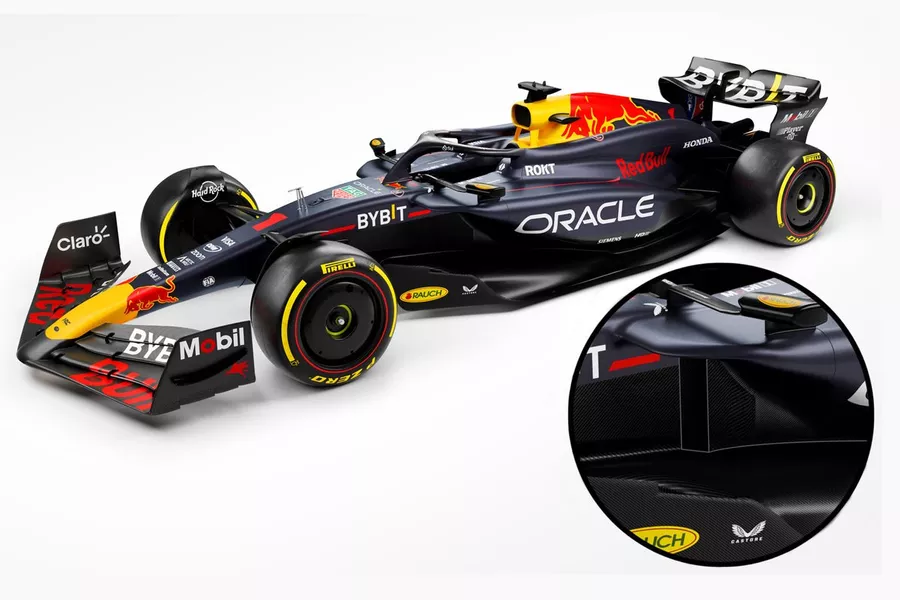

One of the most striking features of the RB20 is the vertical inlet positioned beside the chassis. While reminiscent of Mercedes’ vertical inlet from the previous season, Red Bull’s design represents a hybridized solution that combines elements of wider, high-waisted bodywork with an extreme undercut and downwashing ramp solution.

This vertical inlet not only enhances aerodynamic performance but also opens up new possibilities for the depth and width of the undercut, further optimizing airflow around the car.

Performance-Driven Development

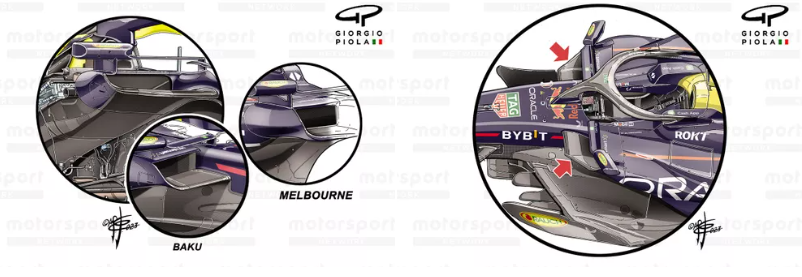

The decision to adopt a vertical inlet follows an intense development program undertaken by Red Bull with the RB19 last season. This program aimed to maximize performance from the undercut, with each iteration pushing the boundaries of aerodynamic efficiency.

By raising the underbite-style solution higher, Red Bull encountered dimensional constraints imposed by regulations regarding the width of the inlet. As a result, the team sought a new approach to strike a balance between aerodynamics and cooling efficiency, leading to the adoption of the vertical inlet on the RB20.

Aerodynamic Advancements: The Waterslide Gully

In addition to the vertical inlet, Red Bull has incorporated several aerodynamic advancements into the design of the RB20. The sidepod now features a gentle waterslide gully, inspired by Alpine, which effectively manages airflow into the coke bottle region.

This innovative design not only improves aerodynamic performance but also enhances the overall stability and handling of the car, giving Red Bull a competitive edge on the track.

Drawing Inspiration from Mercedes

While Red Bull’s design philosophy is undeniably unique, it’s worth noting that the team has drawn inspiration from rival teams, particularly Mercedes. The RB20’s engine cover features a shelf-like outcropping, reminiscent of a design element seen on last year’s Mercedes car.

This outcropping creates a deep waterslide gully on the upper surface of the engine cover, optimizing airflow and enhancing aerodynamic efficiency. By leveraging ideas from Mercedes and other competitors, Red Bull has been able to refine its design and stay at the forefront of F1 innovation.

Conclusion

In conclusion, Red Bull Racing’s RB20 represents a bold leap forward in F1 design and engineering. By embracing innovative solutions such as the vertical inlet and waterslide gully, Red Bull has demonstrated its commitment to pushing the boundaries of aerodynamic performance.

As the 2024 F1 season unfolds, all eyes will be on Red Bull Racing as they put their revolutionary design to the test on the track. Will the RB20 propel Red Bull to victory, or will rival teams find ways to counter its innovative design? Only time will tell.
